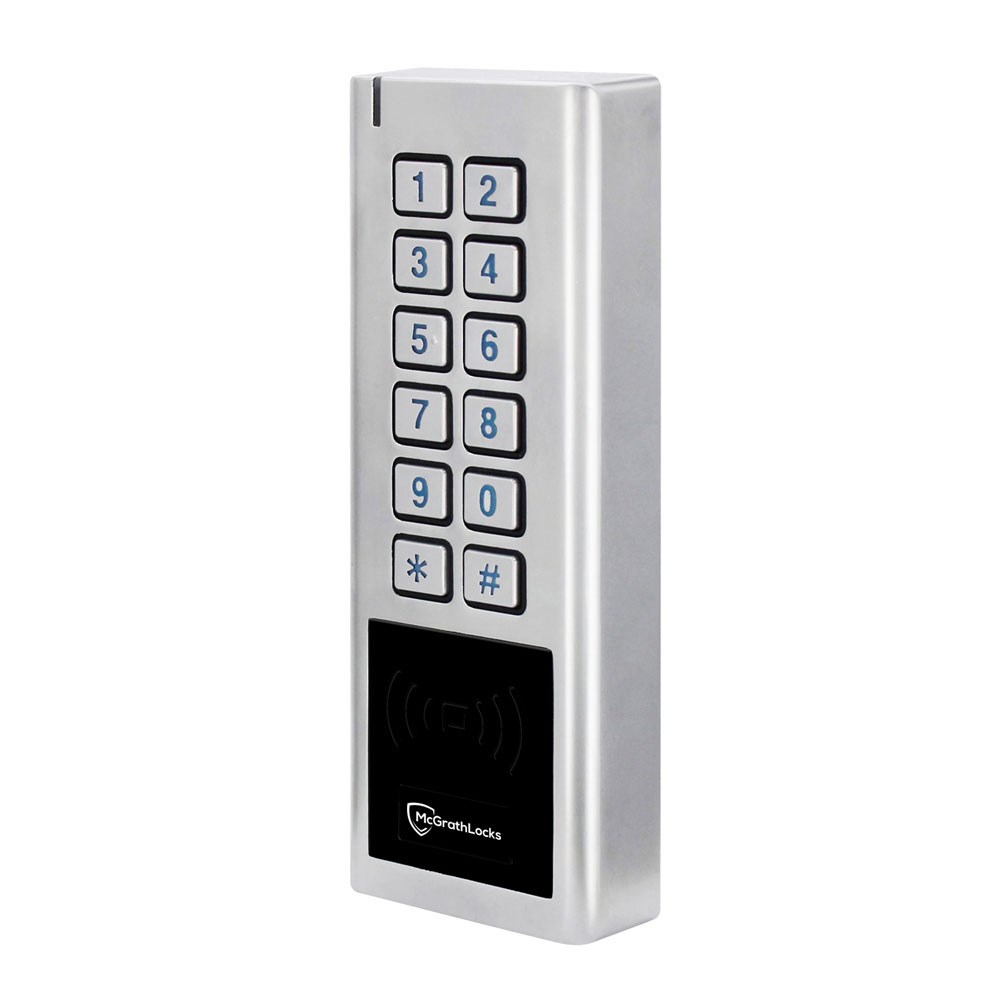

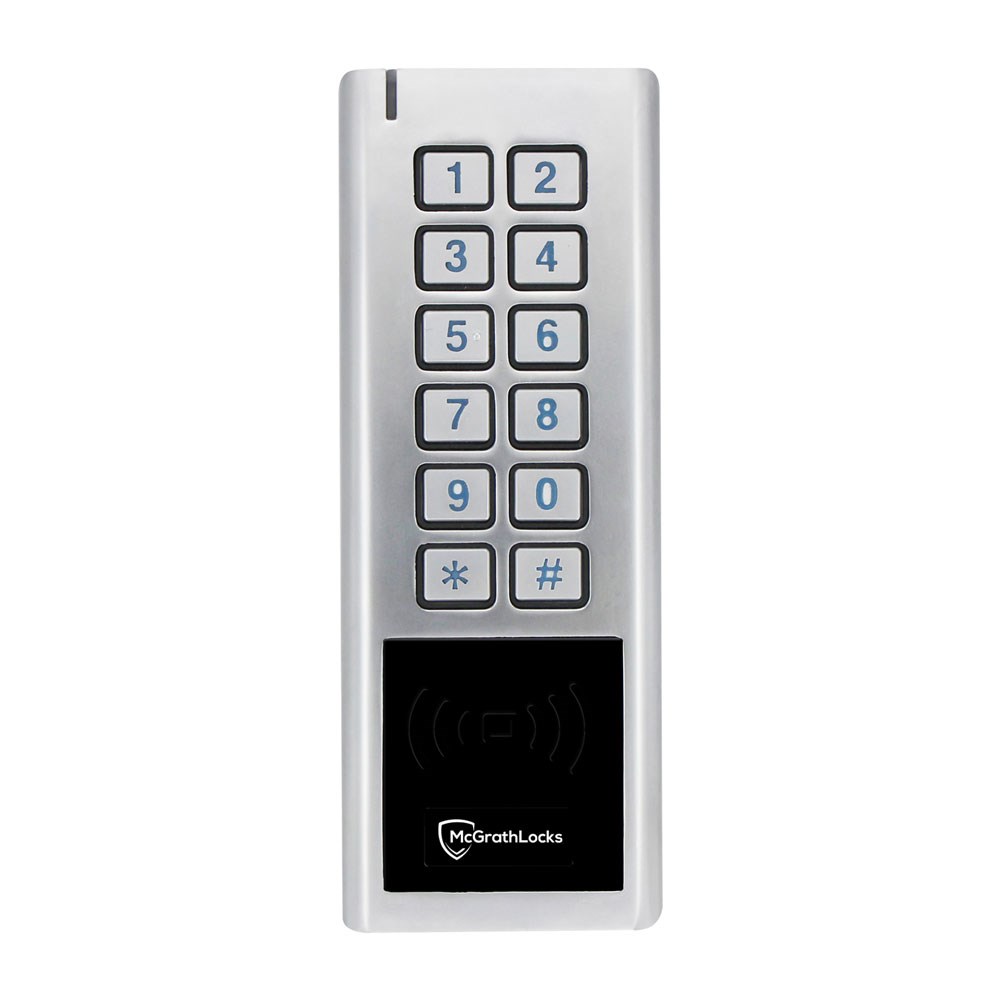

The RBB56 is a battery-powered wireless keypad that connects to a McGrath Lock device to provide PIN code and RFID access. It works as a remote interface, mirroring the PIN and RFID capabilities of the connected device. Communication is handled via Bluetooth (BLE), with a typical operating range of 8–10 metres, making it an ideal companion for Z Chip-based gate or garage door installations.
- The wireless keypad is connected to the Lock device through the McGrath Locks App.
- Enrol Pin Codes, RFID credentials for your family and visitors.
- One keypad can be enrolled into a maximum three different locks/ devices.
- Keypad Dimensions 148 (H) x 56 (W) x 23 mm (D).
- Low battery alert, indicator within app.
Enrolment and Verification
- Unlocking Method: PIN code, RFID credential, BLE via McGrath Locks App.
- Supported Systems: Android - 4.3 /IOS 7.0 and above.
- App: McGrath Locks.
- Platforms: TTLock, TTHotel.
- Communication mode: Bluetooth 5.4 BLE and above.
Keypad Features and Functions
- Pin Code Capacity: Same as device the keypad is connected to.
- RFID Capacity: Same as device the keypad is connected to.
- Card Working Frequency: 13.56MHz.
- Keypad: Raised button.
- Batteries: 3 x AAA Alkaline Batteries (not included).
- Stand-by Power Consumption: <20mA.
- Battery Voltage: 4.5V.
- Battery Life: 18 Months (based on 10 uses per day).
Operating Environment
- Environment: -20°C to +50°C.
- Humidity: 0%-85% RH.
- IP Class: IP65.
- Working Current: <80mA.
- Card Working Frequency: 13.56MHz.
- Warranty: 12 Months.
