Neptune Mag Locks

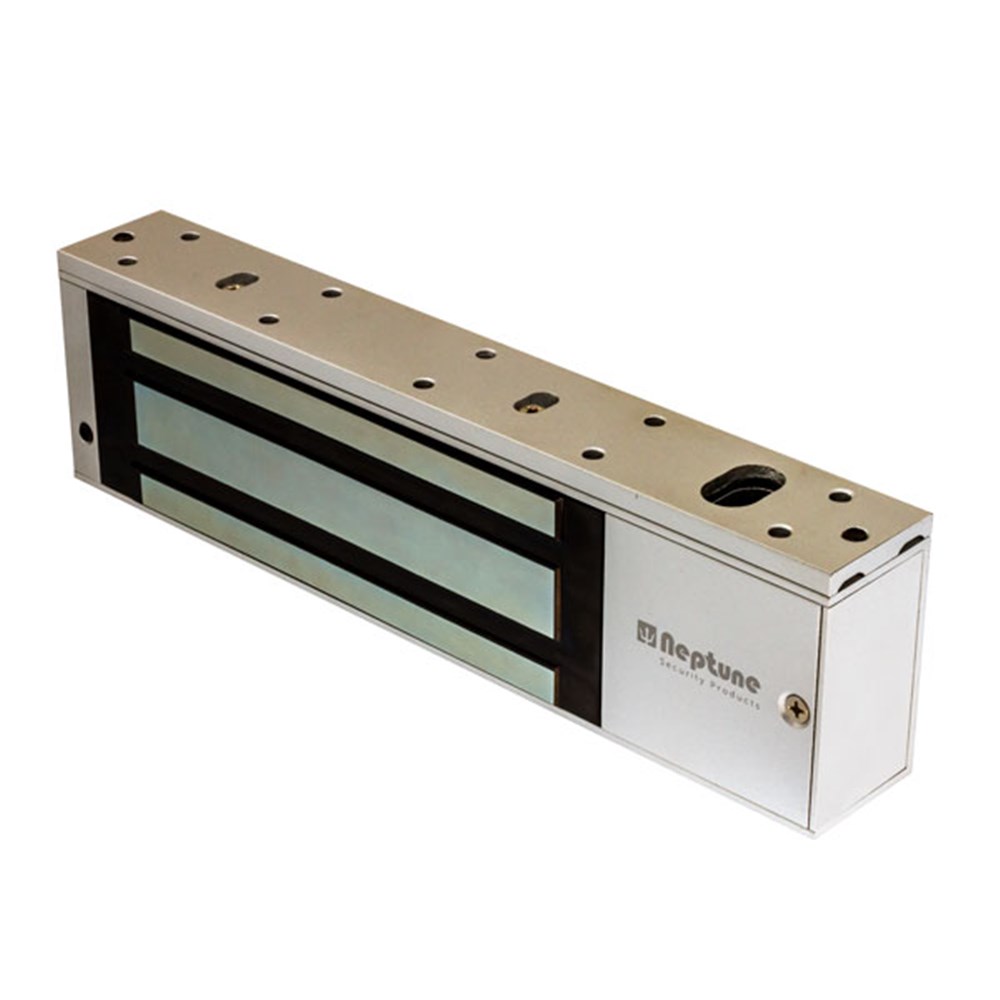

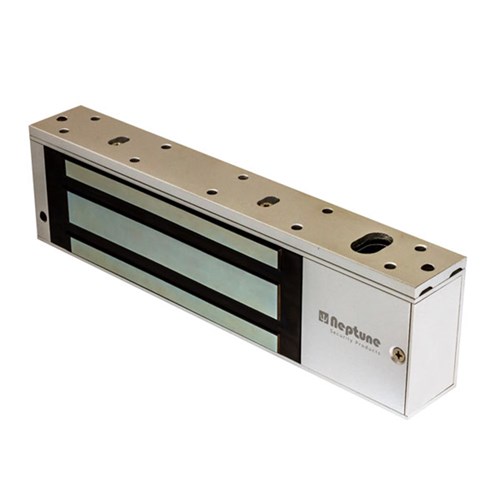

Neptune Maglock Single Door, 500kg, Monitored

Product Code: NEML500M

Are you a tradesperson?

Get access to our best prices



Description

Neptune monitored single door mag lock.

Suitable for Indoor use only.

  • Single door monitored magnetic lock.
  • Dual voltage 12vdc @ 480mA, 24vdc @ 240mA.
  • Monitored, door status sensor.
  • LED indicator.
  • The overload current of relay contact is 1amp.
    .Overload is strictly prohibited for voltage of 24V-DC.
  • Built-in time delay 0, 3, 6 or 9 seconds.
  • Holding force up to 500kgs per magnet.
  • Satin anodised aluminium housing.
  • Zinc plated electromagnetic body.
  • Magnet size 265 (L) x 71 (H) x 40 mm (D).
  • Armature plate 185 (L) x 60 (H) x 13 mm (D).
  • Weight 4.5kg.
  • L and Z mounting brackets are also available.
Technical Specifications
Brand NEPTUNE
Finish Satin Anodised
Working Voltage 12 Vdc to 24 Vdc
Door Status Sensor Yes
Holding Force In Kg 500
LED Indicator Yes
Time Delay Yes
Single Or Double Door Maglock? Single
Monitoring Monitored
